Adaptive robotic welding

Automate high-mix welding

An adaptive cell that sees each part and welds it. High-mix with no programming, no fixtures, and just one operator required.

ROBOTIC WELDING

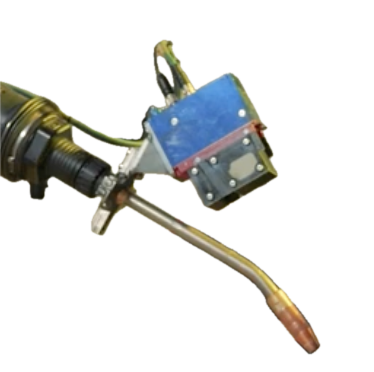

Weld head with vision sensor
Vision scanner
5×
Throughput
60-90%
Utilization (vs 15-20%)
0
Programming
-10%
Less gas and wire use
From deployed cells. Nothing to take on faith. See the proof below ↓
01 · The bottleneck

Welding sets the ceiling.

Cause
Skilled welders are scarce.

Welders retire faster than they’re replaced, and certified structural welders take years to train. They're expensive to hire, hard to retain, and stretched thin across shifts.

Effect
Steel ships slower than the market demands.

Structural work floods the shop, but because welding is the constraint, not demand, that work backs up behind the welders you have.

→
The opening
Automation is how you capture the gap the market is leaving open.
02 · The solution

The robot scans the part, understands it, and then welds.

Once per part family, the operator marks the weld locations on the 3D model. Then the pre-assembled part is placed freely in the cell, with no jig and no reference points. The cell scans the real workpiece, maps those welds onto how the part actually sits, and welds — adapting to deviations automatically in minutes, so the robot welds instead of waiting.

Vision → plan → weld
Continuous welding line running unattended.
One operator
A single operator running the cell.
Book a call
03 · Workflow

From drawing to weld, in one shift.

One integrated flow replaces three roles: engineer, programmer, and operator.

{{ s.n }}
{{ s.t }}
{{ s.b }}
04 · Comparison

Ordinary robots sit idle.

Capability
Steel Robotics
Teach pendant
Cobots
Offline systems
Virtual programming time
Minutes / part
n/a
n/a
Hours-days / part
In-cell programming
Not required
Days-weeks
Hours-days
Hours-days
Effective utilization
60-90%
~15%
15-20%
15-20%
Specialist programmer
Not required
Required
Required
Required
Adapts to deviations
Automatic, minutes
Manual
Manual
By programmer
High-mix use
Continuous utilization
Not effective
Limited
Rigid fixtures only
05 · Next step

See your parts welded automatically.

Send us a drawing. We'll come back with cycle times and a live demo on your geometry.
